EBL3 20/0° Linear grilles with horizontal fixed bars with filter
Description
Exhaust grilles with linear horizontal aluminium fixed bars with 0° deflection, with the insertion of a special profile or counterframe that allows the housing of a flat filter for coarse and fine powders.
Characteristics
Material: aluminium.
Finish: painted RAL9016.
Filter: COARSE class (G2) thickness 12 mm.
Installation
The installation is performed by opening the special brackets present in the subframe or alternatively by fixing the latter to the wall or duct using screws.
Use
Suitable for the external air intake or the indoor air return where a pre-filtration of dust is needed.
We recommend not to exceed the front speed of 1,5 m/s. Initial pressure drop lower than 40 Pa.
Models

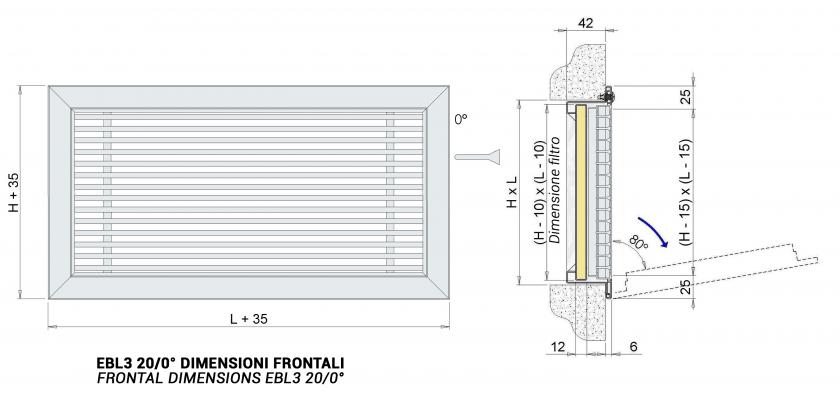

EBL3 20/0°: grille with special counterframe fixed with hinges to the frame of the grille which allows an easy maintenance of the filter. La chiusura avviene mediante meccanismo a vite.
Accessories
- EPZ plenum galvanized;
- EPI plenum isolated.
On demand
Fixing by magnets or knob.
Effective section
Dimensions are expressed in mm.
| H | L | ||||
| 400 | 500 | 600 | 800 | 1000 | |
| sezione efficace della griglia m2 | |||||
| 150 | 0,031 | 0,039 | 0047 | 0,064 | 0,080 |
| 200 | 0,042 | 0,053 | 0,064 | 0,086 | 0,108 |
| 300 | 0,063 | 0,079 | 0,097 | 0,130 | 0,164 |
Operating data
m³/h: air flow
Pa: pressure drop in Pascal
dB(A): noise level
V: front speed on the filter (m / s)
The air speed on the filter of 1,5 m/s is recommended to contain pressure drops and maintain filtration efficiency;
the air flow data in the table refer to the grill with the filter.
Dimensions are expressed in mm.
| H |
V m/s |
L | ||||
| 400 | 500 | 600 | 800 | 1000 | ||
| Front speed on the filter | air flow rate m3/h | |||||
| 150 | 1,5 | 324 | 405 | 486 | 648 | 810 |
| 2 | 432 | 540 | 648 | 864 | 1080 | |
| 200 | 1,5 | 400 | 505 | 605 | 810 | 1015 |
| 2 | 535 | 670 | 805 | 1080 | 1355 | |
| 300 | 1,5 | 610 | 765 | 925 | 1235 | 1550 |
| 2 | 810 | 1025 | 1230 | 1650 | 2065 | |
Noise level dB(A)
|
V m/s |
dB(A) |
| 1,5 | 32/38 |
| 2 | 39/45 |
Pressure drop (Pa)
|
V m/s |
Pa |
| 1,5 | 35/38 |
| 2 | 62/68 |
Plenum box for EBL3 20/0°
|
model L1 x H1 |
upper air connection | side air connection | E | F | ||||
| P1 | n° connection | Ø d | P2 | n° connection | Ø d | |||
| 400x150 | 200 | 1 | 148 | 250 | 1 | 148 | 80 | 12 |
| 500x150 | 200 | 2 | 148 | 250 | 2 | 148 | 80 | 12 |
| 600x150 | 200 | 2 | 148 | 250 | 2 | 148 | 80 | 12 |
| 800x150 | 200 | 2 | 148 | 250 | 2 | 148 | 80 | 12 |
| 1000x150 | 200 | 3 | 148 | 250 | 3 | 148 | 80 | 12 |
| 400x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 |
| 500x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 |
| 600x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 |
| 800x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 |
| 1000x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 |
| 400x300 | 200 | 1 | 248 | 350 | 1 | 248 | 80 | 12 |
| 500x300 | 200 | 1 | 248 | 350 | 1 | 248 | 80 | 12 |
| 600x300 | 200 | 2 | 198 | 350 | 2 | 248 | 80 | 12 |
| 800x300 | 200 | 2 | 248 | 350 | 2 | 248 | 80 | 12 |
| 1000x300 | 200 | 2 | 248 | 350 | 2 | 248 | 80 | 12 |
Price list
| dimensions | EBL3 20/0° painted white RAL9016 | upper air connection | side air connection | ||
| EPZ galvanized plenum | EPI isolated plenum | EPZ galvanized plenum | EPI isolated plenum | ||
| LxH | euro | euro | euro | euro | euro |
| 400x150 | 117,63 | a.r. | a.r. | a.r. | a.r. |
| 500x150 | 130,65 | a.r. | a.r. | a.r. | a.r. |
| 600x150 | 134,48 | a.r. | a.r. | a.r. | a.r. |
| 800x150 | 160,98 | a.r. | a.r. | a.r. | a.r. |
| 1000x150 | 197,66 | a.r. | a.r. | a.r. | a.r. |
| 400x200 | 135,35 | a.r. | a.r. | a.r. | a.r. |
| 500x200 | 157,74 | a.r. | a.r. | a.r. | a.r. |
| 600x200 | 156,37 | a.r. | a.r. | a.r. | a.r. |
| 800x200 | 180,76 | a.r. | a.r. | a.r. | a.r. |
| 1000x200 | 227,80 | a.r. | a.r. | a.r. | a.r. |
| 400x300 | 171,42 | a.r. | a.r. | a.r. | a.r. |
| 500x300 | 165,84 | a.r. | a.r. | a.r. | a.r. |
| 600x300 | 189,44 | a.r. | a.r. | a.r. | a.r. |
| 800x300 | 235,14 | a.r. | a.r. | a.r. | a.r. |
| 1000x300 | 289,50 | a.r. | a.r. | a.r. | artDS1701232 |
