EGZ100 Industrial exhaust steel grilles 100 mm pitch

Recommend this product
Home General catalogue Air Diffusion Grilles Egz100 Industrial Exhaust Steel Grilles 100 Mm Pitch

Description

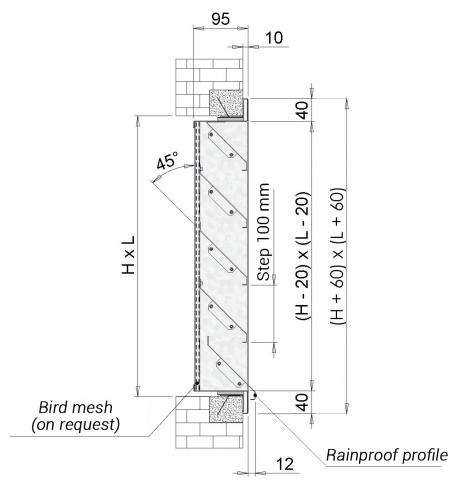

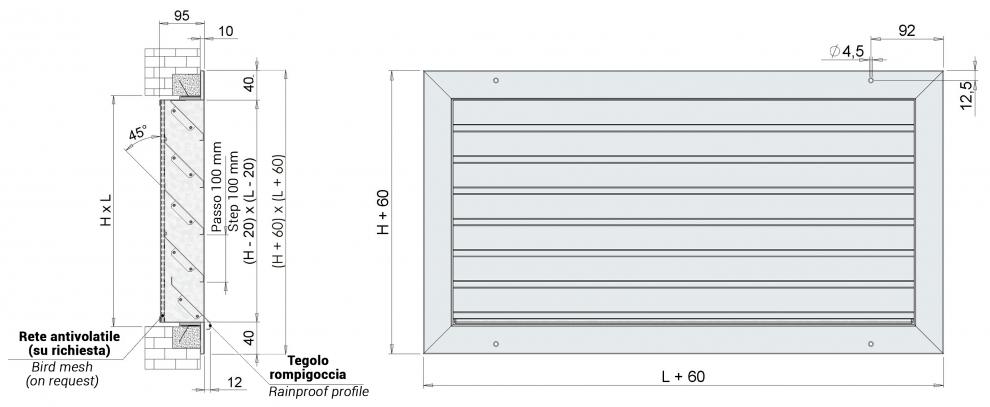

Exhaust grilles consisting of a strong steel profile.
The blades are inclined by 45° with a 100 mm pitch.

Characteristics

Material: steel.
Finish: galvanised.
Installation: fastening by means of front screws.


Dimensions achievable in one piece:
- min. base 200 mm x height 200 mm;
- max. base 2500 mm x height 2000 mm.

Use

For both air exhaust and expulsion. They can be used both inside and outside buildings thanks to their special rainproof profile.

Accessories

CTP: counter-frame to set into wall.

On request

- Painting in different RAL colours;
- bird mesh.

Effective cross-section

H L
600 800 1000 1200 1400 1600 1800 2000
  effective cross-section m²
600 0,147 0,198 0,248 0,299 0,350 0,401 0,451 0,502
800 0,211 0,284 0,356 0,429 0,502 0,574 0,647 0,720
1000 0,275 0,369 0,464 0,559 0,653 0,748 0,843 0,938
1200 0,338 0,455 0,572 0,689 0,805 0,922 1,039 1,155
1400 0,402 0,541 0,680 0,818 0,957 1,096 1,234 1,373
1600 0,466 0,627 0,787 0,948 1,109 1,270 1,430 1,591
1800 0,530 0,713 0,895 1,078 1,261 1,443 1,626 1,809

Operating data

Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
dB(A): noise level

L: base (blade length)
H: height
All dimensions are expressed in mm

H Vk
m/s 		L
600 800 1000 1200 1400 1600 1800 2000
    flow rate m³/h
600 4 2115 2845 3575 4305 5035 5765 6500 7230
6 3175 4270 5365 6460 7555 8650 9745 10840
800 4 3035 4085 5130 6175 7225 8270 9315 10365
6 4555 6125 7695 9265 10835 12405 13975 15545
1000 4 3955 5320 6680 8045 9410 10775 12135 13500
6 5930 7980 10020 12070 14115 16160 18205 20250
1200 4 4870 6555 8235 9915 11595 13275 14955 16635
6 7310 9830 12350 14870 17395 19914 22435 24955
1400 4 5790 7790 9785 11785 13780 15780 17775 19775
6 8690 11685 14680 17675 20670 23670 26665 29660
1600 4 6710 9025 11340 13655 15965 18280 20595 22910
6 10065 13535 17010 20480 23950 27420 30895 34365
1800 4 7630 10260 12890 15520 18155 20785 23415 26045
6 11445 15390 19335 23285 27230 31175 35125 39070

Noise level dB(A)

Vk
m/s 		dB(A)
4 25/30
6 35/45
8 45/50

Pressure drop (Pa)

Vk
m/s 		Pa
4 16
6 45
8 80

Configuration

CTP counter-frame

Price list

Notes:
- with bird mesh +20%
- painted RAL: price on request

CTP counter-frame
