EDQ 10-14 Multidirectional square diffusers - models from 10 to 14

Home General catalogue Air Diffusion Air Diffusers Edq 10 14 Multidirectional Square Diffusers Models From 10 To 14

Description

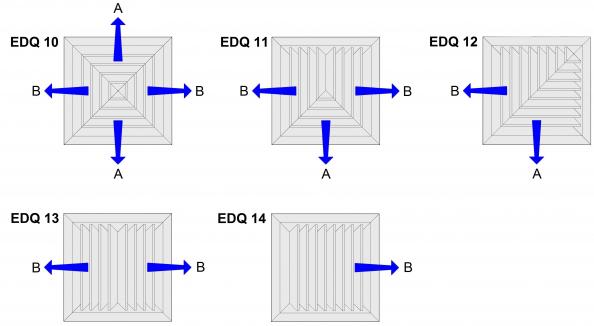

Multidirectional square diffusers with removable cones.

Characteristics

Material: aluminium.
Finish: natural anodised.
Installation: fastening by means of non-visible screws.

Use

Very versatile diffuser, especially suitable in systems where it is necessary to control the air throw in specific directions.

On request

White RAL 9016 painting or other RAL colours (prices on request).

Accessories

- SC galvanised steel regulation damper with blades with opposing movement.
- EPZ-EDQ galvanised steel plenum.
- EPI-EDQ galvanised steel insulated plenum.

Operating data EDQ10

Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level

all dimensions are expressed in mm.

dimensions
HxL
Vk (m/s) 3 4 5 6
effective cross-section m2 m3/h L(m) m3/h L(m) m3/h L(m) m3/h L(m)
150x150 0,010 108 1,2 144 1,6 180 2 216 2,6
225x225 0,022 238 1.8 317 2,5 396 3,2 475 3,8
300x300 0,038 410 2,4 547 3,2 686 4 820 4,8
375x375 0,058 626 2,9 835 3,9 1044 4,8 1253 5,8
450x450 0,085 918 3,6 1224 4,8 1530 6 1836 7,2
525x525 0,116 1253 4,2 1670 5,4 2088 7 2505 8,4
600x600 0,150 1620 4,6 2160 6,4 2700 7,8 3240 9,5
pressure drop Pa 5  10  15  20
noise level dB(A) 20/25 30/35 35/40 40/45

Operating data EDQ11

LA: air throw on side A (m)
LB: air throw on side B (m)
Pa: pressure drops in Pascal
dB(A): noise level

all dimensions are expressed in mm

dimensions
HxL
Vk (m/s) 3 4 5 6
effective cross-section m2 m3/h LA(m)  LB(m) m3/h LA(m) LB(m) m3/h LA(m) LB(m) m3/h LA(m) LB(m)
150x150 0,010 108 1,5 1,7 144 2,1 2,5 180  2,6 3 216  3 3,4
225x225 0,022 238 2,3 2,9 317 2,7 3,5 396 3,8 4,7 475 4,6 5,6
300x300 0,038 410 3 3,4 547 3,8 4,8 686 5 6,2 820 5,9 7,2
375x375 0,058 626 3,6 4,2 835 4,7 5,7 1044 5,8 7 1253 6,9 8,3
450x450 0,085 918 4,1 5,1 1224 5,6 7 1530 6,8 8,4 1836 8,2 10,2
525x525 0,116 1253 4,8 6,2 1670 6,5 7,9 2088 8,2 10 2505 9,8 12,6
600x600 0,150 1620 5,4 6,6 2160 7 8,5 2700 8,8 10,9 3240 10.3 12,8
pressure drop Pa 5 10 15 20
noise level dB(A) 20/25 30/35 35/40 40/45

Operating data EDQ12

Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level

all dimensions are expressed in mm.

dimensions
HxL
Vk (m/s) 3 4 5 6
effective cross-section m2 m3/h L(m) m3/h L(m) m3/h L(m) m3/h L(m)
150x150 0,009 98 2,3 130 2,9 162 3,6 195 4,7
225x225 0,020 216 3,6 288 5 360 3,4 432 7,6
300x300 0,034 368 4,6 490 6,1 612 7,8 735 9,4
375x375 0,051 550 5,7 735 7,7 918 9,4 1101 11,3
450x450 0,074 800 7 1066 9,4 1332 11,6 1598 13,5
525x525 0,100 1080 8 1440 10,4 1800 13,5 2160 16
600x600 0,126 1360 8,3 2160 6,4 2700 7,8 3240 9,5
pressure drop Pa 5 10 15 20
noise level dB(A) 20/25 30/35 35/40 40/45

Operating data EDQ13

Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level

all dimensions are expressed in mm.

dimensions
HxL
Vk (m/s) 3 4 5 6
effective cross-section m2 m3/h L(m) m3/h L(m) m3/h L(m) m3/h L(m)
150x150 0,009 98 2,3 130 2,9 162 3,6 195 4,7
225x225 0,020 216 3,8 288 5,2 360 3,6 432 7,8
300x300 0,034 368 4,6 490 6,3 612 8,2 735 9,8
375x375 0,051 550 6 735 8 918 9,8 1101 11,8
450x450 0,074 800 7,1 1066 9,8 1332 12 1598 14
525x525 0,100 1080 8,4 1440 10,8 1800 14 2160 16,8
600x600 0,126 1360 8,6 1815 12 2268 13,8 2722 18
pressure drop Pa 5 10 15 20
noise level dB(A) 20/25 30/35 35/40 40/45

Operating data EDQ14

Vk: effective speed (m/s)
m³/h: air flow
Pa: pressure drop in Pascal
L(m): air throw in meters calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level

Dimensions are expressed in mm

dimensions
HxL
Vk (m/s) 3 4 5 6
effective cross-section m2 m3/h L(m) m3/h L(m) m3/h L(m) m3/h L(m)
150x150 0,009 98 3,1 130 3,9 162 4,8 195 6,3
225x225 0,020 216 5,2 288 7 360 4,9 432 10,5
300x300 0,034 368 6,5 490 8,1 612 11 735 13,2
375x375 0,051 550 8,1 735 10,8 918 13,2 1101 16
450x450 0,074 800 9,9 1066 13,2 1332 16,2 1598 18,9
525x525 0,100 1080 11,3 1440 14,6 1800 18,4 2160 22
600x600 0,126 1360 11,5 1815 16 2268 18 2722 24
pressure drop Pa 5 10 15 20
noise level dB(A) 20/25 30/35 35/40 40/45

SC regulation damper

Galvanised steel regulation damper with blades with opposing movement.

Plenum

EDQ L1 x H1 Ø d P1 P2 E
150x150 150x150 125 200 245 50
225x225 225x225 150 200 270 50
300x300 300x300 200 200 320 50
375x375 375x375 200 200 320 50
450x450 450x450 250 250 370 50
525x525 525x525 300 200 400 50
600x600 600x600 300 200 400 50

Price list

Note: painted white RAL 9016 + 20%.

Accessories

dimensions
LxH
damper
SC
lateral connection top connection
galvanized plenum isolated plenum galvanized plenum isolated plenum
EPZ-EDQ EPI-EDQ EPZ-EDQ EPI-EDQ
euro euro euro euro euro
150x150 13,57 a.r. a.r. a.r. a.r.
225x225 16,32 a.r. a.r. a.r. a.r.
300x300 27,79 a.r. a.r. a.r. a.r.
375x375 34,93 a.r. a.r. a.r. a.r.
450x450 44,82 a.r. a.r. a.r. a.r.
525x525 76,00 a.r. a.r. a.r. a.r.
600x600 76,00 a.r. a.r. a.r. a.r.
