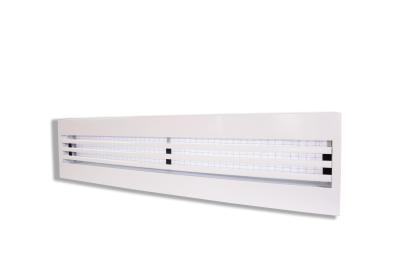

The linear diffusers of EDFL/BP serie can be used both to supply and to extract air in environments too much extended in terms of area, but with relative heights limited.
The supply version, equipped with adjustable deflectors for the orientation of the air flow, could be accessorized with sliding damper and/or equalizer.
The extraction version, without deflectors, could be also accessorized with sliding damper and it is available also with filter (EDFL/B-P-FL); also, in this case, the filter is fixed by magnets, easily extractable through a book opening of the fins pack without the need to disassemble the diffuser.
The diffusers of EDFL/B-P are installed in offices, open spaces, banks, hotel hall, business centres, shops, courts etc.
They are built with extruded aluminium profile in order to achieve a highly aerodynamic design and esthetically pleasing, with a galvanized sheet steel panel. 1 to 6 slots can be made in the EDFL / B-P versions, and with 3 and 4 slits in the EDFL / B-P-FL filter holder version.
Standard painting of RAL 9016 diffusers with base powders of epoxy resins placed electrostatically and dried in the oven; on request they can be painted with other colors.
This type of painting is resistant to impact and abrasions, and keeps the characteristics unchanged over time
aesthetic. Fixing the diffuser to the plenum is carried out by means of uncovered mounting bridges.
Material: extruded aluminium profile and galvanized sheet steel panel
Standard surface finish: white RAL9016 painted
Fixing: with mounting bridges.
Installation height: from 2.5 to 3.1 m
EDFL / B-P 10 diffusers for air extraction on panel, white RAL9016 painted
EDFL / B-P 20 diffusers for air supply on panel white RAL9016 painted, with white deflectors
EDFL / B-P 30 diffusers for air extraction on panel, white RAL9016 painted, with sliding damper
EDFL / B-P 40 diffusers for air supply on panel white RAL9016 painted, with white deflectors and sliding damper.
EDFL / B-P 50 diffusers for air supply on panel white RAL9016 painted, with white deflectors, equalizer and sliding damper.
EDFL / B-P-FL diffusers for air extraction on panel with filter, white RAL 9016 painted

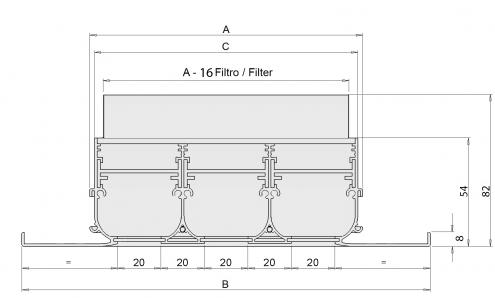

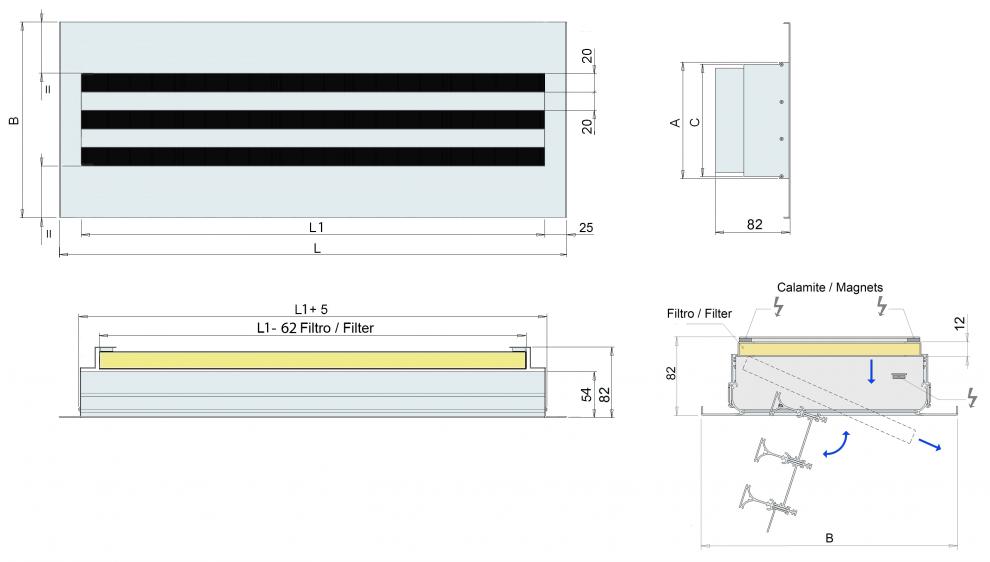

Version of EDFL/B-P-FL with filter available with 3 and 4 slots
Number slot | A mm |
C mm |
1 | 46 | 41 |
2 | 86 | 81 |
3 | 126 | 121 |
4 | 166 | 161 |
5 | 206 | 201 |
6 | 246 | 241 |
Standard version
Fine line version
L mm |
L1 mm |
B mm |
600 | 550 | 300 |
900 | 850 | 300 |
1200 | 1150 | 300 |
1350 | 1300 | 300 |
600 | 550 | 600 |
1200 | 1150 | 600 |
675 | 625 | 675 |
1350 | 1300 | 675 |
Slots number |

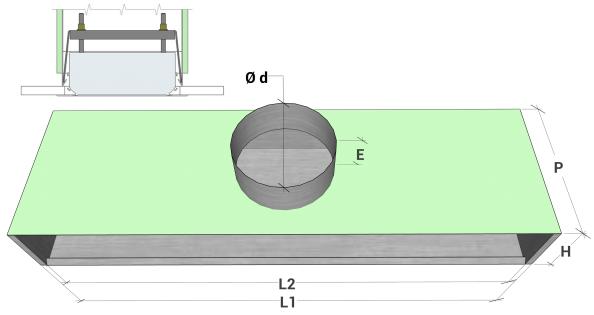

L | Plenum dimensions | ||||||
L1 | L2 | Number of air cuts | Ø d | P | H | E | ||
1 slot | 800 | 845 | 815 | 1 | 98 | 300 | 58 | 80 |
1000 | 1045 | 1015 | 1 | |||||
1500 | 1545 | 1515 | 2 | |||||
2000 | 2045 | 2015 | 2 | |||||
2 slots | 800 | 845 | 815 | 1 | 148 | 300 | 98 | 80 |
1000 | 1045 | 1015 | 1 | |||||
1500 | 1545 | 1515 | 2 | |||||
2000 | 2045 | 2015 | 2 | |||||
3 slots | 800 | 845 | 815 | 1 | 198 | 300 | 138 | 80 |
1000 | 1045 | 1015 | 1 | |||||
1500 | 1545 | 1515 | 2 | |||||
2000 | 2045 | 2015 | 2 | |||||
4 slots | 800 | 845 | 815 | 1 | 198 | 300 | 178 | 80 |
1000 | 1045 | 1015 | 1 | |||||
1500 | 1545 | 1515 | 2 | |||||
2000 | 2045 | 2015 | 2 | |||||
5 slots | 800 | 845 | 815 | 1 | 198 | 300 | 218 | 80 |
1000 | 1045 | 1015 | 1 | |||||
1500 | 1545 | 1515 | 2 | |||||
2000 | 2045 | 2015 | 2 | |||||
6 slots | 800 | 845 | 815 | 1 | 198 | 300 | 258 | 80 |
1000 | 1045 | 1015 | 1 | |||||
1500 | 1545 | 1515 | 2 | |||||
2000 | 2045 | 2015 | 2 |
No. of slots | Air speed m/s | Pannel dimension L x B - Air flow rate m³/h | ||||
600 x 300 |
900 x 300 | 1200 x 300 |
1350 x 300 |
675 x 675 | ||
600 x 600 | 1200 x 600 | 1350 x 675 | ||||
1 | 2 | 40 | 60 | 80 | 90 | 45 |
3 | 55 | 85 | 115 | 130 | 60 | |
4 | 70 | 110 | 150 | 170 | 80 | |
2 | 2 | 88 | 136 | 185 | 210 | 100 |
3 | 125 | 195 | 265 | 300 | 145 | |
4 | 165 | 255 | 345 | 390 | 185 | |
3 | 2 | 145 | 220 | 300 | 340 | 165 |
3 | 210 | 325 | 435 | 495 | 240 | |
4 | 275 | 425 | 575 | 650 | 310 | |
4 | 2 | 205 | 315 | 425 | 480 | 235 |
3 | 310 | 475 | 645 | 730 | 350 | |
4 | 415 | 635 | 860 | 975 | 470 | |
5 | 2 | 255 | 395 | 530 | 600 | 295 |
3 | 390 | 595 | 805 | 910 | 435 | |
4 | 520 | 790 | 1075 | 1210 | 590 | |
6 | 2 | 305 | 475 | 635 | 720 | 350 |
3 | 470 | 715 | 965 | 1095 | 525 | |
4 | 625 | 950 | 1290 | 1460 | 700 |
No. of slots | Air speed m/s |
Pannel dimension L x B - Air flow rate m³/h | ||||
600 x 300 |
900 x 300 | 1200 x 300 |
1350 x 300 |
675 x 675 | ||
600 x 600 | 1200 x 600 | 1350 x 675 | ||||
3 | 1,5 | 290 | 470 | 650 | 735 | 335 |
2 | 385 | 625 | 860 | 980 | 445 | |
4 | 1,5 | 395 | 640 | 880 | 1000 | 455 |
2 | 530 | 850 | 1175 | 1340 | 610 |
number slots | EDFL/B-P 10 | EDFL/B-P 20 | EDFL/B-P 30 | EDFL/B-P 40 | EDFL/B-P 50 | EDFL/B-P FL |
1 | a.r. | a.r. | a.r. | a.r. | a.r. | - |
2 | a.r. | a.r. | a.r. | a.r. | a.r. | - |
3 | a.r. | a.r. | a.r. | a.r. | a.r. | a.r. |
4 | a.r. | a.r. | a.r. | a.r. | a.r. | a.r. |
5 | a.r. | a.r. | a.r. | a.r. | a.r. | - |
6 | a.r. | a.r. | a.r. | a.r. | a.r. | - |
