EGA 1-4 Exhaust aluminium grilles 25 mm pitch with filter

Recommend this product
Home General catalogue Air Diffusion Grilles Ega 1 4 Exhaust Aluminium Grilles 25 Mm Pitch With Filter

Description

Exhaust grilles with fixed horizontal and inclined at 45 ° rows, with the insertion of a special profile or counterframe that allows the housing of a flat filter for coarse and fine powders.

Characteristics

Material: aluminium.
Finish: anodized.
Filter: COARSE class (G2) thickness 12 mm.

Installation

The installation is performed by opening the special brackets present in the subframe or alternatively by fixing the latter to the wall or duct using screws.

EGA1 - EGA2: only for wall installation, ceiling installation is not recommended. Closing by magnets.

EGA3 - EGA4: closing with a screw.

Use

Suitable for the external air intake or the indoor air return where a pre-filtration of dust is needed.
We recommend not to exceed the front speed of 1,5 m/s. Initial pressure drop lower than 40 Pa.

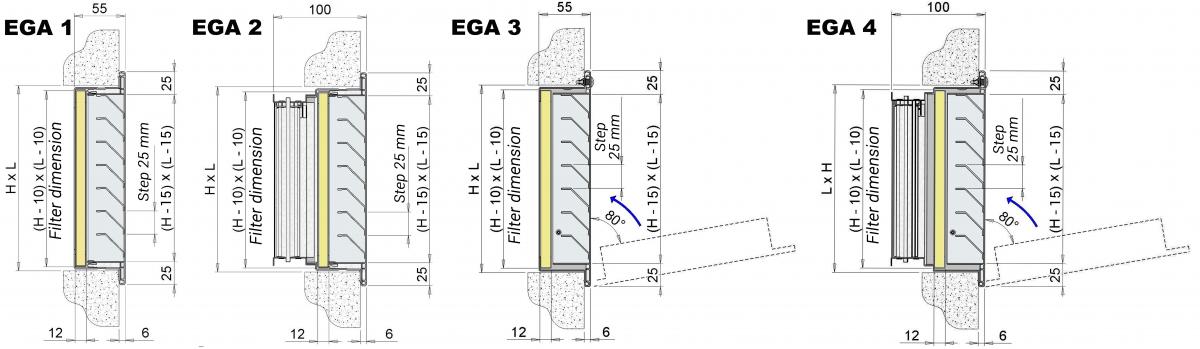

Models

EGA1: grille with filter;
EGA2: grille with filter and damper;
EGA3: grille with special counterframe fixed with hinges to the frame of the grille which allows an easy maintenance of the filter;
EGA4: grille with damper and special counterframe fixed with hinges to the frame of the grille which allows an easy maintenance of the filter.

Accessories

- EPZ plenum galvanized;
- EPI plenum isolated;

On demand

Fixing by magnets or knobs (for EGA3 - EGA4).

Effective section


H L
200 300 400 500 600 800 1000
  effective section of the grid m2
200 0,019 0,030 0,040 0,050 0,061 0,081 0,102
300 0,029 0,045 0,061 0,076 0,092 0,124 0,155
400 0,039 0,060 0,081 0,102 0,123 0,166 0,208
500 0,049 0,075 0,102 0,128 0,155 0,208 0,261
600 0,059 0,091 0,123 0,154 0,186 0,250 0,313
800 0,079 0,121 0,164 0,206 0,249 0,334 0,419

Operating data

m³/h: air flow
Pa: pressure drop in Pascal
dB(A): noise level
V: front speed on the filter (m / s)

The air speed on the filter of 1,5 m/s is recommended to contain pressure drops and maintain filtration efficiency;
the air flow data in the table refer to the grill with the filter.

Dimensions are expressed in mm.

H
V
m/s		 L
200 300 400 500 600 800 1000
Front speed on the filter air flow rate m3/h
200 1,5 195 300 400 505 605 810 1015
2 260 395 535 670 805 1080 1355
300 1,5 300 455 610 765 925 1235 1550
2 395 605 810 1025 1230 1650 2065
400 1,5 400 610 820 1030 1245 1665 2085
2 535 815 1095 1375 1655 2220 2780
500 1,5 505 765 1030 1300 1560 2090 2620
2 670 1025 1375 1730 2080 2790 3495
600 1,5 605 925 1245 1560 1880 2515 3155
2 805 1230 1655 2080 2505 3355 4205
800 1,5 810 1235 1665 2090 2515 3370 4225
2 1080 1650 2220 2790 3355 4495 5630

Noise level dB(A)

V
m/s 		dB(A)
1,5 32/38
2 39/45

Pressure drop (Pa)

V
m/s 		Pa
1,5 35/38
2 62/68

EGA2 - EGA4 Calibration damper

SC galvanized steel calibration damper with fins with opposing movement.

Plenum

All dimensions are espressed in mm.

model
L1 x H1 		upper air connection side air connection E F model
L1 x H1 		upper air connection side air connection E F
P1 n° connection Ø d P2 n° connection Ø d P1 n° connection Ø d P2 n° connection Ø d
200x200 200 1 198 300 1 198 80 12 500x300 200 1 248 350 1 248 80 12
300x200 200 1 198 300 1 198 80 12 600x300 200 2 198 350 2 248 80 12
400x200 200 1 198 300 1 198 80 12 800x300 200 2 248 350 2 248 80 12
500x200 200 1 198 300 1 198 80 12 1000x300 200 2 248 350 2 248 80 12
600x200 200 2 198 300 2 198 80 12 400x400 200 1 298 350 1 298 80 12
800x200 200 2 198 300 2 198 80 12 500x400 200 1 298 350 1 298 80 12
1000x200 200 2 198 300 2 198 80 12 600x400 200 2 198 350 2 248 80 12
300x300 200 1 248 350 1 248 80 12 800x400 200 2 298 350 2 298 80 12
400x300 200 1 248 350 1 248 80 12 1000x400 200 2 298 400 2 298 80 12

Price list EGA1

White painted RAL 9016 +20%.

Price list EGA3

Price list EGA2 and EGA4 on request

Plenum

dimensions upper air connection side air connection
EPZ galvanized plenum EPI isolated plenum EPZ galvanized plenum EPI isolated plenum
L1xH1 euro euro euro euro
200x200 a.r. a.r. a.r. a.r.
300x200 a.r. a.r. a.r. a.r.
400x200 a.r. a.r. a.r. a.r.
500x200 a.r. a.r. a.r. a.r.
600x200 a.r. a.r. a.r. a.r.
800x200 a.r. a.r. a.r. a.r.
1000x200 a.r. a.r. a.r. a.r.
300x300 a.r. a.r. a.r. a.r.
400x300 a.r. a.r. a.r. a.r.
500x300 a.r. a.r. a.r. a.r.
600x300 a.r. a.r. a.r. a.r.
800x300 a.r. a.r. a.r. a.r.
1000x300 a.r. a.r. a.r. a.r.
400x400 a.r. a.r. a.r. a.r.
500x400 a.r. a.r. a.r. a.r.
600x400 a.r. a.r. a.r. a.r.
800x400 a.r. a.r. a.r. a.r.
1000x400 a.r. a.r. a.r. a.r.
