EDFL EDFLB Linear slot diffusers with deflectors

Recommend this product
Home General catalogue Air Diffusion Air Diffusers Edfl Edflb Linear Slot Diffusers With Deflectors

Description

Linear slot diffuser with aerodynamic aluminium profile and adjustable deflectors for optimal air throw control.
Also available with sliding regulation damper.

Characteristics

Material: aluminium.
EDFL finish: natural anodised aluminium frame and black painted aluminium deflectors.
EDFLB finish: white RAL 9016 painted aluminium frame and deflector.

Slots: from 1 to 4 in standard version, 5 or 6 on request.

Installation: directly on duct or by means of a plenum with a fixing bracket system.

Possible dimensions in one piece:
- minimum length 300 mm;
- maximum length 2000 mm.

Use

Diffuser suitable for both air supply and exhaust in large rooms. Its modularity allows for great freedom of design.

Models

EDFL-10 exhaust diffusers (without deflectors).
EDFL-20 supply diffusers with black deflectors.
EDFLB-20 white RAL9016 supply diffusers with white deflectors.
EDFL-30 exhaust diffusers with damper.
EDFL-40 supply diffusers with black deflectors and sliding damper.
EDFLB-40 white RAL9016 supply diffusers with white deflectors and sliding damper.
EDFL-50 supply diffusers with black deflectors, equaliser and sliding damper.
EDFLB-50 white RAL9016 supply diffusers with white deflectors, equaliser and sliding damper.

Accessories

- galvanised plenum;
- insulated plenum;
- 90° corner connection;
- fixing brackets;
- continuity kit.

Linear diffuser dimensions

All dimensions are expressed in mm

Number of slots L A B C number of fixing brackets
1 slot 600 46 70 41 2
800 2
1000 2
1200 2
1500 2
2000 2
2 slots 600 86 110 81 2
800 2
1000 2
1200 2
1500 2
2000 2
3 slots 600 126 150 121 2
800 2
1000 2
1200 2
1500 2
2000 3
4 slots 600 166 190 161 2
800 2
1000 2
1200 2
1500 2
2000 3

Operating data

Data referring to 1m long diffusers, with a terminal throw velocity Vt=0.25 m/s and with a temperature differential of 10/12°C, in ceiling installations and with lateral air throw.

Data referring to diffusers without damper or with open sliding damper.
Data referring to diffusers with deflectors in the working position with a 50% reduction of the air passage surface.

The position of the deflectors reduces the effective cross-section. When the deflectors are fully open or when the diffuser is used for air exhaust, the flow rates expressed in m³/h indicated in the table may be higher.

Vk: effective speed (m/s)
m³/h: air flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres
dB(A): noise level

Number of slots effective cross-section m² air flow rate and throw
1 slot 0,0097 m3/h 70 105 140 175 210 245
L(m) 1.8 2.7 3.6 4.5 5.4 6.3
2 slots 0,0194 m3/h 140 210 280 350 420 490
L(m) 2.5 3.8 5 6.3 7.5 8.8
3 slots 0,0291 m3/h 210 315 420 525 630 735
L(m) 3 4.7 6 7.8 9.3 11
4 slots 0,0388 m3/h 280 420 560 700 840 980
L(m) 3.5 5.4 7 9 11 12.6
Vk m/s 2 3 4 5 6 7
pressure drops Pa 8 15 26 40 55 70
noise level dB(A) <20 22 32 37 44 48

Corner connection

Aesthetic connecting element between the two linear diffuser lines with a 90° angle and 500 mm length on each side. The angle does not feature deflectors.

All measurements are expressed in mm.

Continuity kit

The continuity kit is an accessory required to create continuous lines of linear diffusers longer than 2 metres. It is made up of two junction plates that allow for the alignment and connection of two components of the line.

Equizing mesh and sliding damper:

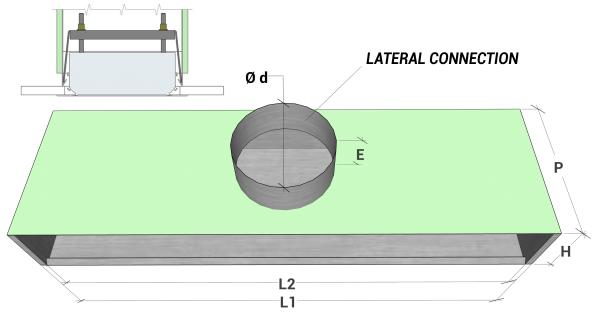

Plenum dimensions and fixing bracket system

All dimensions are expressed in mm



Number of slots		 L       Plenum dimensions
L1 L2 No. of connections Ø d P H E
1 Slot 600 645 615 1 98 300 58 80
800 845 815 1
1000 1045 1015 1
1200 1245 1215 2
1500 1545 1515 2
2000 2045 2015 2
2 Slots 600 645 615 1 148 300 98 80
800 845 815 1
1000 1045 1015 1
1200 1245 1215 2
1500 1545 1515 2
2000 2045 2015 2
3 Slots 600 645 615 1 198 300 138 80
800 845 815 1
1000 1045 1015 1
1200 1245 1215 2
1500 1545 1515 2
2000 2045 2015 2
4 Slots 600 645 615 1 198 300 178 80
800 845 815 1
1000 1045 1015 1
1200 1245 1215 2
1500 1545 1515 2
2000 2045 2015 2

Installation

Price list

Natural anodised aluminium frame and black painted aluminium deflectors.

lenght EDFL-10 EDFL-20 EDFL-30 EDFL-40 EDFL-50 PLENUM INSULATED PLENUM
euro euro euro euro euro euro euro
1
slot		 600 33,16 37,00 39,32 45,82 48,60 49,30 64,10
800 37,90 42,29 44,94 50,23 55,55 a.r. a.r.
1000 42,30 47,59 51,10 54,64 63,46 a.r. a.r.
1200 46,70 52,89 57,26 63,46 72,28 67,37 88,65
1500 53,75 60,80 65,22 72,26 81,09 a.r. a.r.
2000 64,34 74,04 79,29 88,15 100,47 a.r. a.r.
2
slots		 600 43,95 54,55 57,06 64,79 74,04 52,15 67,83
800 50,23 62,34 65,22 74,04 84,61 a.r. a.r.
1000 56,38 67,86 74,04 84,61 96,05 a.r. a.r.
1200 62,54 73,39 82,87 95,19 107,50 73,17 95,84
1500 73,15 87,25 95,18 108,40 126,90 a.r. a.r.
2000 89,90 108,40 116,33 135,72 155,97 a.r. a.r.
3
slots		 600 54,75 66,33 74,04 85,62 99,48 54,99 71,55
800 62,58 75,80 84,61 97,85 113,68 a.r. a.r.
1000 70,53 85,50 96,05 111,01 130,42 a.r. a.r.
1200 78,49 95,21 107,50 124,18 147,17 77,66 101,72
1500 91,63 113,68 125,16 147,18 171,87 a.r. a.r.
2000 114,57 141,89 154,23 182,44 214,14 a.r. a.r.
4
slots		 600 65,55 85,35 95,69 105,64 124,16 59,72 77,28
800 74,91 97,55 106,90 120,73 141,89 a.r. a.r.
1000 85,50 104,86 118,10 138,34 164,73 a.r. a.r.
1200 96,10 120,69 131,15 155,96 187,59 80,97 106,29
1500 111,93 139,24 155,12 183,29 215,94 a.r. a.r.
2000 138,34 175,34 191,24 228,25 268,78 a.r. a.r.

White painted with black deflectors + 20%

Price list

White version with white deflectors

lenght EDFLB-20 EDFLB-40 EDFLB-50 PLENUM INSULATED PLENUM
euro euro euro euro euro
1
slot		 600 46,89 58,06 61,58 49,30 64,10
800 53,57 63,61 70,34 a.r. a.r.
1000 60,29 69,19 80,36 a.r. a.r.
1200 67,04 80,40 90,43 67,37 88,65
1500 77,02 91,52 102,71 a.r. a.r.
2000 93,75 111,65 127,21 a.r. a.r.
2
slots		 600 69,12 82,07 93,78 52,15 67,83
800 79,00 93,75 107,12 a.r. a.r.
1000 85,94 107,12 121,62 a.r. a.r.
1200 92,99 120,55 136,19 73,17 95,84
1500 110,52 137,26 160,69 a.r. a.r.
2000 137,28 171,88 197,54 a.r. a.r.
3
slots		 600 84,00 108,46 126,80 54,99 71,55
800 95,96 123,90 144,84 a.r. a.r.
1000 108,28 140,60 165,19 a.r. a.r.
1200 120,66 157,38 185,63 77,66 101,72
1500 143,96 186,37 217,62 a.r. a.r.
2000 179,68 231,06 271,22 a.r. a.r.
4
slots		 600 108,15 133,85 157,33 59,72 77,28
800 123,60 152,90 179,71 a.r. a.r.
1000 132,81 175,20 208,62 a.r. a.r.
1200 152,93 197,60 237,65 80,97 106,29
1500 176,34 232,14 273,49 a.r. a.r.
2000 222,11 289,07 340,41 a.r. a.r.

Price list

fixing bracket euro
1 slot 11,85
2 slots 11,85
3 slots 11,85
4 slots 11,85

Accessory price list

Angular without deflectors EDFL EDFLB
euro euro
1 feritoia 84,62 101,56
2 feritoie 112,81 135,34
3 feritoie 140,98 169,16
4 feritoie 171,02 205,19
continuity kit 2,23 2,23
