EGQ-PUSH Exhaust egg crate grille 13x13 mm with filter
Description
Exhaust egg crate grille 13x13 mm pitch for false ceiling installation with double frame with hinged opening and push-pull system for easy storage and replacement of the filter.
Characteristics
Material: aluminium.
Finish: anodized aluminium.
Installation: with screws on internal frame.
Filter: COARSE class (G2) thickness 12 mm.
Opening / closing: push-pull system.
Installation
L'installazione viene eseguita fissando il telaio esterno della griglia al muro mediante viti o, per applicazione su controsoffitti modulari 600x600, in appoggio alla struttura metallica al posto del pannello.
Use
Suitable for the external or indoor air intake where a pre-filtration of dust is needed.
We recommend not to exceed the front speed of 1,5 m/s. Initial pressure drop lower than 40 Pa.
Accessories
- EPZ plenum galvanized;
- EPI plenum isolated.
On demand
Closing with a screws or magnets;
special dimensions;
white painting RAL 9016 or different RAL colors.
Effective section
| H | L | ||||||
| 200 | 300 | 400 | 500 | 600 | 800 | 1000 | |
| sezione efficace della griglia m² | |||||||
| 200 | 0,018 | 0,031 | 0,045 | 0,058 | 0,071 | 0,098 | 0,124 |
| 300 | 0,031 | 0,054 | 0,078 | 0,101 | 0,124 | 0,170 | 0,217 |
| 400 | 0,045 | 0,078 | 0,111 | 0,144 | 0,177 | 0,243 | 0,309 |
| 500 | 0,058 | 0,101 | 0,144 | 0,187 | 0,230 | 0,315 | 0,401 |
| 600 | 0,071 | 0,124 | 0,177 | 0,230 | 0,282 | 0,388 | 0,493 |
Operating data
m³/h: air flow
Pa: pressure drop in Pascal
dB(A): noise level
The air speed on the filter of 1,5 m/s is recommended to contain pressure drops and maintain filtration efficiency;
the air flow data in the table refer to the grill with the filter.

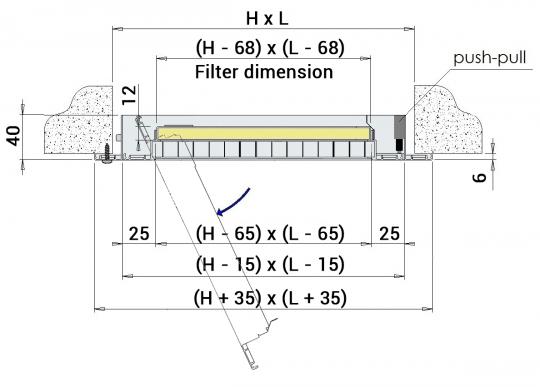

Dimensions are expressed in mm.
| H |
V m/s |
L | ||||||
| 200 | 300 | 400 | 500 | 600 | 800 | 1000 | ||
| Front speed on the filter | Air flow rate m3/h | |||||||
| 200 | 1,5 | 63 | 121 | 180 | 238 | 296 | 413 | 530 |
| 2 | 84 | 162 | 240 | 317 | 395 | 551 | 706 | |
| 300 | 1,5 | 121 | 234 | 346 | 458 | 571 | 795 | 1020 |
| 2 | 162 | 312 | 461 | 611 | 761 | 1060 | 1360 | |
| 400 | 1,5 | 180 | 346 | 512 | 679 | 845 | 1178 | 1510 |
| 2 | 240 | 461 | 683 | 905 | 1127 | 1570 | 2014 | |
| 500 | 1,5 | 238 | 458 | 679 | 899 | 1119 | 1560 | 2000 |
| 2 | 317 | 611 | 905 | 1199 | 1492 | 2080 | 2667 | |
| 600 | 1,5 | 296 | 571 | 845 | 1119 | 1394 | 1942 | 2491 |
| 2 | 395 | 761 | 1127 | 1492 | 1858 | 2590 | 3321 | |

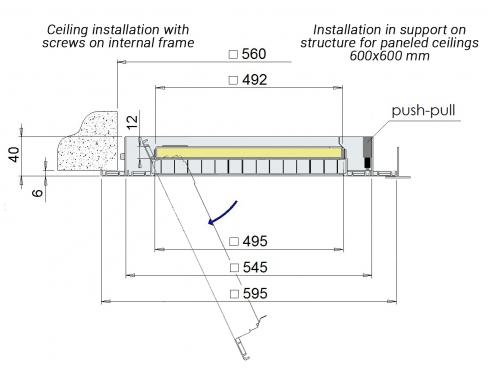

Operating data for the version for suspended ceilings
| model | external frame size | effective section of the grid | effective filter section | Front speed on the filter | air flow rate |
| mm | m2 | m2 | m/s | m3/h | |
| EGQ-PUSH | 595x595 | 0,229 | 0,218 | 1,5 | 1180 |
| 2 | 1570 |
Noise level dB(A)
|
V m/s |
dB(A) |
| 1,5 | <20 |
| 2 | 20/25 |
Pressure drop (Pa)
|
V m/s |
Pa |
| 1,5 | 25/30 |
| 2 | 45/50 |
Plenum
|
model L1 x H1 |
upper air connection | side air connection | E | F |
model L1 x H1 |
upper air connection | side air connection | E | F | ||||||||
| P1 | n° connection | Ø d | P2 | n° connection | Ø d | P1 | n° connection | Ø d | P2 | n° connection | Ø d | ||||||
| 200x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 | 500x300 | 200 | 1 | 248 | 350 | 1 | 248 | 80 | 12 |
| 300x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 | 600x300 | 200 | 2 | 198 | 350 | 2 | 248 | 80 | 12 |
| 400x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 | 800x300 | 200 | 2 | 248 | 350 | 2 | 248 | 80 | 12 |
| 500x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 | 1000x300 | 200 | 2 | 248 | 350 | 2 | 248 | 80 | 12 |
| 600x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 | 400x400 | 200 | 1 | 298 | 350 | 1 | 298 | 80 | 12 |
| 800x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 | 500x400 | 200 | 1 | 298 | 350 | 1 | 298 | 80 | 12 |
| 1000x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 | 600x400 | 200 | 2 | 198 | 350 | 2 | 248 | 80 | 12 |
| 300x300 | 200 | 1 | 248 | 350 | 1 | 248 | 80 | 12 | 800x400 | 200 | 2 | 298 | 350 | 2 | 298 | 80 | 12 |
| 400x300 | 200 | 1 | 248 | 350 | 1 | 248 | 80 | 12 | 1000x400 | 200 | 2 | 298 | 400 | 2 | 298 | 80 | 12 |
Plenum box for grid version from false ceiling with squares
All dimensions are espressed in mm.
|
model L1 x H1 |
side air connection | E | F | ||
| P2 | n° connection | Ø d | |||
| 560x560 | 300 | 1 | 250 | 80 | 12 |
Price list
White painted RAL 9016 + 20%
| H | L | ||||||||
| 200 | 300 | 400 | 500 | 600 | 800 | 1000 | |||
| euro | euro | euro | euro | euro | euro | euro | |||
| 200 | 58,15 | 60,69 | 75,89 | 89,38 | 100,08 | 118,26 | 153,94 | ||
| 300 | 60,69 | 76,94 | 93,79 | 107,46 | 123,32 | 156,00 | 180,51 | ||
| 400 | 75,89 | 93,79 | 107,50 | 133,85 | 154,97 | 193,92 | 220,26 | ||
| 500 | 89,38 | 107,46 | 133,85 | 157,06 | 188,62 | 220,26 | 260,33 | ||
| 600 | 100,08 | 123,32 | 154,97 | 188,62 | 210,68 | 258,23 | 310,90 | ||
Grid price list for squared ceiling version
White painted RAL 9016 + 20%
| model | external frame size | euro |
| mm | ||
| EGQ-PUSH | 595x595 | 160,24 |
Plenum
| dimensions | upper air connection | side air connection | ||
| EPZ galvanized plenum | EPI isolated plenum | EPZ galvanized plenum | EPI isolated plenum | |
| L1xH1 | euro | euro | euro | euro |
| 200x200 | a.r. | a.r. | a.r. | a.r. |
| 300x200 | a.r. | a.r. | a.r. | a.r. |
| 400x200 | a.r. | a.r. | a.r. | a.r. |
| 500x200 | a.r. | a.r. | a.r. | a.r. |
| 600x200 | a.r. | a.r. | a.r. | a.r. |
| 800x200 | a.r. | a.r. | a.r. | a.r. |
| 1000x200 | a.r. | a.r. | a.r. | a.r. |
| 300x300 | a.r. | a.r. | a.r. | a.r. |
| 400x300 | a.r. | a.r. | a.r. | a.r. |
| 500x300 | a.r. | a.r. | a.r. | a.r. |
| 600x300 | a.r. | a.r. | a.r. | a.r. |
| 800x300 | a.r. | a.r. | a.r. | a.r. |
| 1000x300 | a.r. | a.r. | a.r. | a.r. |
| 400x400 | a.r. | a.r. | a.r. | a.r. |
| 500x400 | a.r. | a.r. | a.r. | a.r. |
| 600x400 | a.r. | a.r. | a.r. | a.r. |
| 800x400 | a.r. | a.r. | a.r. | a.r. |
| 1000x400 | a.r. | a.r. | a.r. | a.r. |
