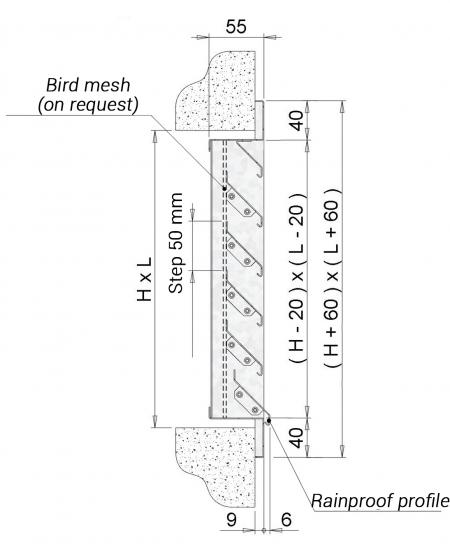

Exhaust grille made of robust galvanized steel profile. The fixed fins are inclined at 45 ° with a 50 mm pitch.
Material : steel.
Finish: galvanized.
Installation : fixing by frontal screws.
Dimensions achievable in one piece:
- min. base 200 mm x height 200 mm;
- max. base 2500 mm x height 2500 mm.
Suitable for the extraction and expulsion of air, both in civil and industrial environments. It can be used both inside and outside the buildings thanks to the particular rainproof profile.
CTP: galvanized steel counterframe.
- Personalized paintings;
- bird mesh.
H | L | |||||||
400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | |
Effective section m2 | ||||||||
400 | 0,067 | 0,102 | 0,138 | 0,173 | 0,208 | 0,243 | 0,279 | 0,314 |
500 | 0,087 | 0,132 | 0,178 | 0,224 | 0,270 | 0,315 | 0,361 | 0,407 |
600 | 0,107 | 0,163 | 0,219 | 0,275 | 0,331 | 0,387 | 0,443 | 0,499 |
800 | 0,146 | 0,223 | 0,300 | 0,377 | 0,454 | 0,530 | 0,607 | 0,684 |
1000 | 0,186 | 0,283 | 0,381 | 0,479 | 0,576 | 0,674 | 0,772 | 0,869 |
1200 | 0,225 | 0,344 | 0,462 | 0,581 | 0,699 | 0,818 | 0,936 | 1,054 |
1500 | 0,284 | 0,434 | 0,584 | 0,733 | 0,883 | 1,033 | 1,182 | 1,332 |
Vk: effective speed (m/s)
m³/h: air flow
Pa: pressure drop in Pascal
dB(A): noise level
L: base
H: Height
Dimensions are expressed in mm.
H |
Vk m/s |
L | |||||||
400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | ||
Air flow rate m³/h | |||||||||
400 | 4 | 965 | 1475 | 1980 | 2490 | 2995 | 3505 | 4015 | 4520 |
6 | 1450 | 2210 | 2970 | 3735 | 4495 | 5260 | 6020 | 6780 | |
8 | 1930 | 2950 | 3965 | 4980 | 5995 | 7010 | 8025 | 9045 | |
500 | 4 | 1250 | 1910 | 2565 | 3225 | 3880 | 4540 | 5195 | 5855 |
6 | 1875 | 2860 | 3850 | 4835 | 5820 | 6810 | 7795 | 8780 | |
8 | 2500 | 3815 | 5130 | 6445 | 7760 | 9080 | 10395 | 11710 | |
600 | 4 | 1535 | 2345 | 3150 | 3955 | 4765 | 5570 | 6380 | 7185 |
6 | 2300 | 3515 | 4725 | 5935 | 7145 | 8360 | 9570 | 10780 | |
8 | 3070 | 4685 | 6300 | 7915 | 9530 | 11145 | 12760 | 14375 | |
800 | 4 | 2105 | 3210 | 4320 | 5425 | 6530 | 7640 | 8750 | 9855 |
6 | 3155 | 4815 | 6475 | 8135 | 9800 | 11460 | 13120 | 14780 | |
8 | 4205 | 6420 | 8635 | 10850 | 13065 | 15280 | 17490 | 19710 | |
1000 | 4 | 2675 | 4080 | 5485 | 6895 | 8300 | 9705 | 11110 | 12520 |
6 | 4010 | 6120 | 8230 | 10340 | 12450 | 14560 | 16670 | 18780 | |
8 | 5345 | 8160 | 10970 | 13785 | 16600 | 19410 | 22225 | 25040 | |
1200 | 4 | 3245 | 4950 | 6655 | 8360 | 10065 | 11775 | 13480 | 15185 |
6 | 4860 | 7420 | 9980 | 12540 | 15100 | 17660 | 20220 | 22780 | |
8 | 6485 | 9895 | 10310 | 16720 | 20130 | 23545 | 26960 | 30370 | |
1500 | 4 | 4095 | 6250 | 8405 | 10560 | 12715 | 14870 | 17030 | 19185 |
6 | 6145 | 9375 | 12610 | 15840 | 19075 | 22310 | 25540 | 28775 | |
8 | 8190 | 12500 | 16810 | 21120 | 25435 | 29745 | 34055 | 38365 |
Vk m/s |
dB(A) |
4 | 25/30 |
6 | 35/45 |
8 | 45/50 |
Vk m/s |
Pa |
4 | 16 |
6 | 45 |
8 | 80 |
Notes :
- with bird mesh + 30 %
- mosquito mesh price on request.
- RAL painting : price on request
Grille EGZ50 | ||||||||
H | L | |||||||
400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | |
euro | euro | euro | euro | euro | euro | euro | euro | |
400 | 102,70 | 109,96 | 117,14 | 124,41 | 131,66 | 140,33 | 147,56 | 157,66 |
500 | 109,96 | 128,65 | 140,33 | 156,23 | 170,69 | 186,58 | 201,10 | 216,97 |
600 | 115,72 | 138,85 | 160,61 | 185,17 | 205,41 | 229,99 | 251,68 | 274,84 |
800 | 128,72 | 166,37 | 205,55 | 242,97 | 282,06 | 319,66 | 355,84 | 394,89 |
1000 | 141,72 | 195,27 | 248,80 | 302,33 | 357,25 | 406,45 | 461,44 | 514,96 |
1200 | 161,79 | 225,68 | 292,14 | 361,63 | 432,49 | 500,47 | 565,57 | 636,48 |
1500 | 196,72 | 269,04 | 360,15 | 451,32 | 542,43 | 630,70 | 724,68 | 814,41 |
Subframe CTP | ||||||||
H | L | |||||||
400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | |
euro | euro | euro | euro | euro | euro | euro | euro | |
400 | 55,05 | 82,59 | 98,44 | 112,63 | 135,12 | 157,63 | 180,03 | 202,56 |
500 | 68,80 | 98,44 | 102,25 | 126,67 | 151,93 | 177,23 | 202,21 | 227,50 |
600 | 82,59 | 103,04 | 121,89 | 150,10 | 180,02 | 210,04 | 240,12 | 270,12 |
800 | 98,44 | 121,89 | 162,54 | 200,12 | 240,06 | 280,04 | 320,15 | 360,17 |
1000 | 112,63 | 150,10 | 200,12 | 250,14 | 300,06 | 350,07 | 400,20 | 450,21 |
1200 | 135,12 | 180,02 | 240,06 | 300,06 | 360,08 | 420,07 | 480,23 | 540,25 |
1500 | 168,80 | 225,10 | 300,13 | 375,16 | 450,21 | 525,24 | 600,29 | 675,30 |
