CT Counter-frame for air jets and grilles
Home General catalogue Air Diffusion Accessories For Airjets And Grilles Ct Counter Frame For Air Jets And Grilles
Description
Galvanised steel counter-frames for air jets and grilles.
The counter-frames are equipped with special brackets that are bent during installation to anchor them to the walls.
Use
Accessory compatible with EDC series diffusers, EBA - EBV - EBL series air jets and EGA - EGQ - EGF series grilles.
Notes

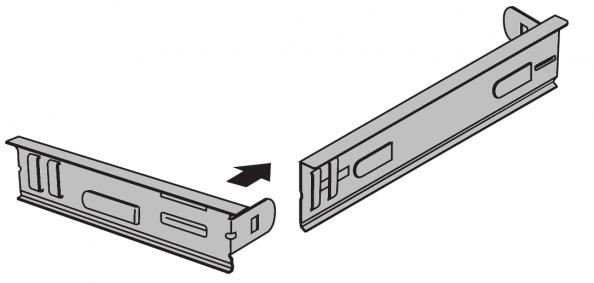

The frame is supplied disassembled and must be assembled on site.

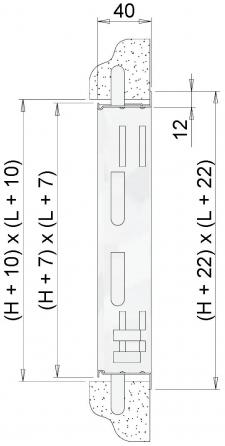

Assembly detail:
Price list
| CT counter-frame | ||||||||||
| H | L | |||||||||
| 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | |
| euro | euro | euro | euro | euro | euro | euro | euro | euro | euro | |
| 100 | 15,12 | 15,12 | 16,79 | 18,47 | 20,19 | 22,20 | 24,19 | a.r. | 27,59 | 36,97 |
| 150 | 15,12 | 16,79 | 18,47 | 22,16 | 24,19 | 25,80 | 27,59 | a.r. | 31,31 | a.r. |
| 200 | 16,79 | 18,47 | 21,35 | 24,19 | 25,91 | 28,64 | 31,31 | a.r. | 34,92 | 40,33 |
| 300 | 18,47 | 22,16 | 25,91 | 29,57 | 31,31 | 34,16 | 36,97 | a.r. | 42,05 | 45,71 |
| 400 | 21,35 | 25,91 | 29,57 | 32,97 | 36,97 | 39,52 | 42,05 | a.r. | 47,69 | 51,05 |
| 500 | 24,19 | 29,57 | 32,97 | 36,97 | 40,33 | 43,20 | 46,09 | a.r. | 51,48 | 56,86 |
| 600 | 25,91 | 31,31 | 36,97 | 40,33 | 44,03 | 46,72 | 49,40 | a.r. | 57,13 | 62,21 |
| 800 | 31,31 | 36,97 | 42,05 | 46,09 | 49,40 | a.r. | 57,13 | a.r. | 64,21 | 71,22 |
| 1000 | 34,92 | 42,05 | 47,69 | 51,48 | 57,13 | artDG03009005 | 64,21 | a.r. | 80,29 | a.r. |
