EBA Supply aluminium grilles 20 mm pitch
Description
Supply air jet with 1 or 2 rows of individually adjustable blades
Characteristics
Material: aluminium.
Finish: natural anodised.
Installation: clip fastening.
Dimensions achievable in one piece:
- min. base 100 mm x height 100 mm.
- max. with base from 100 mm to 1000 mm x height 1000 mm
- max. with base from >1000 mm to 2000 mm x height 600mm.
Use
For air supply with wall or duct installation in ventilation and air conditioning systems.

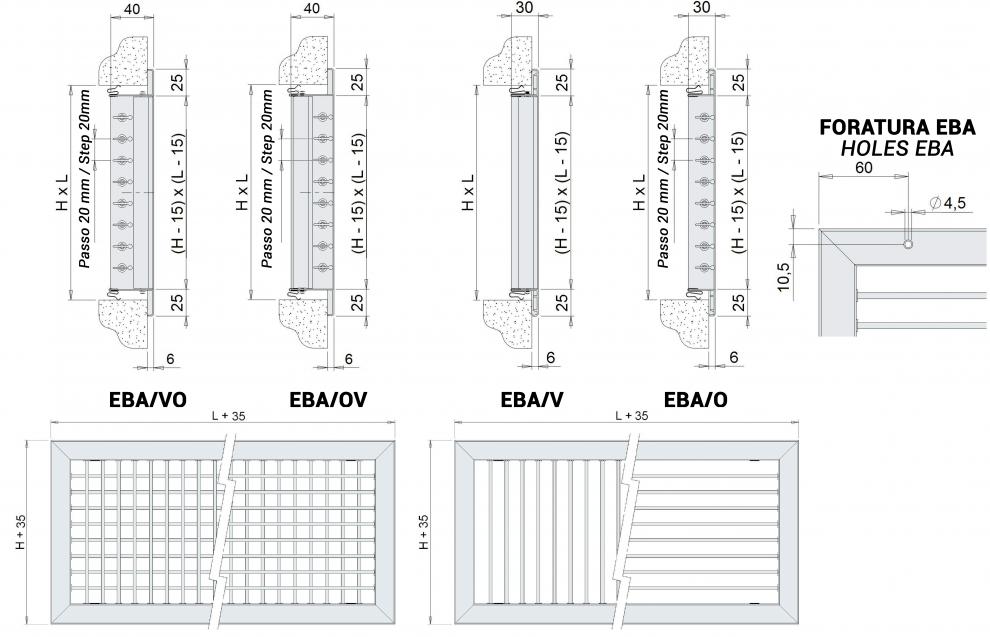

Models
EBA/VO with 2 rows of vertical and horizontal blades;
EBA/OV with 2 rows of horizontal and vertical blades;
EBA/V with 1 row of vertical blades;
EBA/O with 1 row of horizontal blades.
Example: the VO version has the first vertical row near the front and the second horizontal row inside the air jet.
Accessories
- EPZ galvanised plenum;
- EPI insulated plenum;
- SC galvanised steel regulation damper with blades with opposing movement;
- CT galvanised steel counter-frame to set into wall.
On request
White RAL 9016 painting or other RAL colours.
Holes on frame for installation with screws.
Operating data
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L1 (m): air throw of air jet without damper, with a blade deflection of 0°, with coanda (ceiling) effect, terminal velocity 0.25 m/s and Tmax 15°C
dB(A): noise level
All dimensions are expressed in mm
| dimension LxH |
effective cross-sectio |
m³/h | L1 | m³/h | L1 | dimension LxH |
effective cross-sectio |
m³/h | L1 | m³/h | L1 |
| m2 | m2 | ||||||||||
| 200x100 | 0,013 | 100 | 3 | 160 | 5 | 500x200 | 0,071 | 560 | 7.5 | 900 | 10 |
| 300x100 | 0,018 | 140 | 3.7 | 230 | 5.6 | 600x200 | 0,086 | 682 | 10 | 1080 | 11 |
| 400x100 | 0,025 | 200 | 4.5 | 320 | 6,8 | 700x200 | 0,100 | 792 | 10,2 | 1260 | 12 |
| 500x100 | 0,033 | 260 | 6 | 420 | 8 | 800x200 | 0,115 | 910 | 10.3 | 1450 | 13 |
| 600x100 | 0,042 | 335 | 6.8 | 500 | 9 | 1000x200 | 0,145 | 1150 | 10 | 1830 | 15.6 |
| 700x100 | 0,053 | 420 | 7,7 | 667 | 11,9 | 300x300 | 0,058 | 460 | 5.8 | 730 | 9 |
| 200x150 | 0,020 | 160 | 3.6 | 240 | 5.4 | 400x300 | 0,085 | 670 | 6.8 | 1070 | 10 |
| 300x150 | 0,029 | 230 | 4.1 | 370 | 7 | 500x300 | 0,110 | 870 | 8.1 | 1380 | 12 |
| 400x150 | 0,039 | 310 | 4.3 | 500 | 8 | 600x300 | 0,136 | 1080 | 9.6 | 1730 | 15 |
| 500x150 | 0,051 | 400 | 5 | 640 | 9 | 700x300 | 0,158 | 1250 | 10 | 1990 | 15,5 |
| 600x150 | 0,059 | 470 | 5.8 | 750 | 9.5 | 800x300 | 0,178 | 1410 | 10.5 | 2250 | 16 |
| 700x150 | 0,078 | 617 | 8,9 | 982 | 13,9 | 1000x300 | 0,226 | 1790 | 13 | 2860 | 18 |
| 800x150 | 0,086 | 682 | 6 | 1083 | 11 | 400x400 | 0,115 | 910 | 8 | 1430 | 12 |
| 200x200 | 0,026 | 200 | 4 | 300 | 6 | 600x400 | 0,180 | 1430 | 11 | 2290 | 17 |
| 300x200 | 0,044 | 350 | 5.8 | 550 | 8 | 700x400 | 0,210 | 1660 | 11,5 | 2645 | 17,5 |
| 400x200 | 0,057 | 450 | 6.5 | 720 | 9 | 800x400 | 0,245 | 1940 | 12 | 3080 | 18 |
| 1000x400 | 0,310 | 2460 | 16 | 3940 | 20 | ||||||
| Vk (m/s) | 2,2 | 3,5 | Vk (m/s) | 2,2 | 3,5 | ||||||
Noise level dB(A)
|
Vk m/s |
defl. 0° |
defl. 20° |
defl. 40° |
| dB(A) | dB(A) | dB(A) | |
| 2.2 | 15/20 | 18/23 | 20/25 |
| 3.5 | 20/25 | 23/28 | 25/30 |
Pressure drop (Pa)
|
Vk m/s |
defl. 0° |
defl. 20° |
defl. 40° |
| Pa | Pa | Pa | |
| 2.2 | 4 | 5.5 | 7 |
| 3.5 | 9 | 13 | 16 |

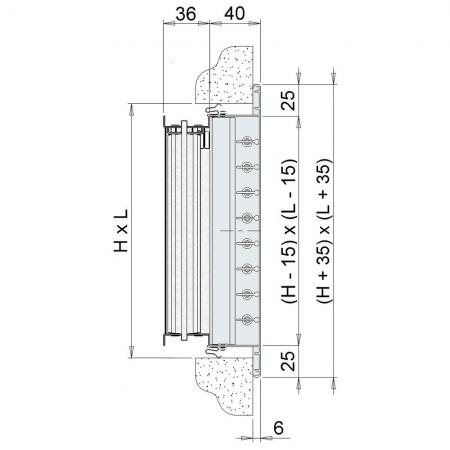

Configuration
All dimensions are espressed in mm.
SC regulation damper
Galvanised steel regulation damper with blades with opposing movement.
Counterframe CT
Plenum
|
model L1 x H1 |
top connection | lateral connection | E | F |
model L1 x H1 |
top connection | lateral connection | E | F | ||||||||
| P1 | no. connections | Ø d | P2 | no. connections | Ø d | P1 | no. connections | Ø d | P2 | no. connections | Ø d | ||||||
| 200x100 | 200 | 1 | 98 | 200 | 1 | 98 | 80 | 12 | 500x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 |
| 300x100 | 200 | 1 | 98 | 200 | 1 | 98 | 80 | 12 | 600x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 |
| 400x100 | 200 | 2 | 98 | 200 | 2 | 98 | 80 | 12 | 700x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 |
| 500x100 | 200 | 2 | 98 | 200 | 2 | 98 | 80 | 12 | 800x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 |
| 600x100 | 200 | 2 | 98 | 200 | 2 | 98 | 80 | 12 | 1000x200 | 200 | 2 | 198 | 300 | 2 | 198 | 80 | 12 |
| 700x100 | 200 | 2 | 98 | 200 | 2 | 98 | 80 | 12 | 300x300 | 200 | 1 | 248 | 350 | 1 | 248 | 80 | 12 |
| 200x150 | 200 | 1 | 148 | 200 | 1 | 148 | 80 | 12 | 400x300 | 200 | 1 | 248 | 350 | 1 | 248 | 80 | 12 |
| 300x150 | 200 | 1 | 148 | 250 | 1 | 148 | 80 | 12 | 500x300 | 200 | 1 | 248 | 350 | 1 | 248 | 80 | 12 |
| 400x150 | 200 | 1 | 148 | 250 | 1 | 148 | 80 | 12 | 600x300 | 200 | 2 | 198 | 350 | 2 | 248 | 80 | 12 |
| 500x150 | 200 | 2 | 148 | 250 | 2 | 148 | 80 | 12 | 700x300 | 200 | 2 | 198 | 350 | 2 | 248 | 80 | 12 |
| 600x150 | 200 | 2 | 148 | 250 | 2 | 148 | 80 | 12 | 800x300 | 200 | 2 | 248 | 350 | 2 | 248 | 80 | 12 |
| 700x150 | 200 | 2 | 148 | 250 | 2 | 148 | 80 | 12 | 1000x300 | 200 | 2 | 248 | 350 | 2 | 248 | 80 | 12 |
| 800x150 | 200 | 2 | 148 | 250 | 2 | 148 | 80 | 12 | 400x400 | 200 | 1 | 298 | 350 | 1 | 298 | 80 | 12 |
| 200x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 | 600x400 | 200 | 2 | 198 | 350 | 2 | 248 | 80 | 12 |
| 300x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 | 800x400 | 200 | 2 | 298 | 350 | 2 | 298 | 80 | 12 |
| 400x200 | 200 | 1 | 198 | 300 | 1 | 198 | 80 | 12 | 700x400 | 200 | 2 | 298 | 350 | 2 | 298 | 80 | 12 |
| 1000x400 | 200 | 2 | 298 | 400 | 2 | 298 | 80 | 12 | |||||||||
Price list
Note: white painted + 20 %
| dimension | EBA-VO | EBA-OV | EBA-O | EBA-V |
| LxH | euro | euro | euro | euro |
| 200x100 | 21,23 | 21,23 | 19,53 | 19,53 |
| 300x100 | 24,57 | 24,57 | 22,08 | 22,08 |
| 400x100 | 31,42 | 31,42 | 25,42 | 25,42 |
| 500x100 | 35,33 | 35,33 | 29,45 | 29,45 |
| 600x100 | 39,21 | 39,21 | 32,70 | 32,70 |
| 700x100 | 47,14 | 47,14 | 35,49 | 35,49 |
| 200x150 | 23,95 | 23,95 | 22,25 | 22,25 |
| 300x150 | 27,75 | 27,75 | 25,45 | 25,45 |
| 400x150 | 40,58 | 40,58 | 29,71 | 29,71 |
| 500x150 | 46,68 | 46,68 | 33,95 | 33,95 |
| 600x150 | 54,32 | 54,32 | 38,21 | 38,21 |
| 700x150 | 61,98 | 61,98 | 40,33 | 40,33 |
| 800x150 | 69,62 | 69,62 | 42,44 | 42,44 |
| 200x200 | 31,42 | 31,42 | 25,42 | 25,42 |
| 300x200 | 40,58 | 40,58 | 29,71 | 29,71 |
| 400x200 | 45,83 | 45,83 | 34,81 | 34,81 |
| 500x200 | 55,18 | 55,18 | 39,06 | 39,06 |
| 600x200 | 65,38 | 65,38 | 43,29 | 43,29 |
| 700x200 | 73,02 | 73,02 | 47,13 | 47,13 |
Dimensions expressed in mm
| dimension | EBA-VO | EBA-OV | EBA-O | EBA-V |
| LxH | euro | euro | euro | euro |
| 800x200 | 80,66 | 80,66 | 50,96 | 50,96 |
| 1000x200 | 87,46 | 87,46 | 55,18 | 55,18 |
| 300x300 | 54,32 | 54,32 | 38,21 | 38,21 |
| 400x300 | 65,38 | 65,38 | 43,29 | 43,29 |
| 500x300 | 70,47 | 70,47 | 51,79 | 51,79 |
| 600x300 | 82,38 | 82,38 | 56,88 | 56,88 |
| 700x300 | 90,86 | 90,86 | 62,82 | 62,82 |
| 800x300 | 99,33 | 99,33 | 68,78 | 68,78 |
| 1000x300 | 118,01 | 118,01 | 84,06 | 84,06 |
| 400x400 | 80,66 | 80,66 | 50,96 | 50,96 |
| 600x400 | 99,33 | 99,33 | 67,95 | 67,95 |
| 700x400 | 112,91 | 112,91 | 78,14 | 78,14 |
| 800x400 | 126,49 | 126,49 | 87,46 | 87,46 |
| 1000x400 | 140,08 | 140,08 | 102,73 | 102,73 |
Accessories
| dimensions | top connection | lateral connection |
damper SC |
counter-frame CT |
||
| EPZ galvanised plenum | EPI isolated plenum | EPZ galvanized plenum | EPI isolated plenum | |||
| L1xH1 | euro | euro | euro | euro | euro | euro |
| 200x100 | a.r. | a.r. | a.r. | a.r. | 13,21 | 14,13 |
| 300x100 | a.r. | a.r. | a.r. | a.r. | 14,39 | 14,13 |
| 400x100 | a.r. | a.r. | a.r. | a.r. | 17,21 | 15,68 |
| 500x100 | a.r. | a.r. | a.r. | a.r. | 20,54 | 17,25 |
| 600x100 | a.r. | a.r. | a.r. | a.r. | 23,50 | 18,85 |
| 700x100 | 50,61 | 68,29 | 50,61 | 68,29 | 26,52 | a.r. |
| 200x150 | a.r. | a.r. | a.r. | a.r. | 14,57 | 14,13 |
| 300x150 | a.r. | a.r. | a.r. | a.r. | 16,86 | 15,68 |
| 400x150 | a.r. | a.r. | a.r. | a.r. | 19,86 | 17,25 |
| 500x150 | a.r. | a.r. | a.r. | a.r. | 23,00 | 20,69 |
| 600x150 | a.r. | a.r. | a.r. | a.r. | 26,21 | 22,59 |
| 700x150 | 64,56 | 83,89 | 68,36 | 89,12 | 29,89 | a.r. |
| 800x150 | a.r. | a.r. | a.r. | a.r. | 33,57 | 25,76 |
| 200x200 | a.r. | a.r. | a.r. | a.r. | 15,96 | 15,68 |
| 300x200 | a.r. | a.r. | a.r. | a.r. | 22,39 | 17,25 |
| 400x200 | a.r. | a.r. | a.r. | a.r. | 24,57 | 19,94 |
| 500x200 | a.r. | a.r. | a.r. | a.r. | 28,86 | 22,59 |
| 600x200 | a.r. | a.r. | a.r. | a.r. | 33,25 | 24,19 |
| 700x200 | 67,75 | 88,08 | 75,82 | 99,11 | 37,00 | a.r. |
| dimensions | top connection | lateral connection |
damper SC |
counter-frame CT |
||
| EPZ galvanized plenum | EPI isolated plenum | EPZ galvanized plenum | EPI isolated plenum | |||
| L1xH1 | euro | euro | euro | euro | euro | euro |
| 800x200 | a.r. | a.r. | a.r. | a.r. | 40,75 | 29,23 |
| 1000x200 | a.r. | a.r. | a.r. | a.r. | 45,48 | 32,61 |
| 300x300 | a.r. | a.r. | a.r. | a.r. | 27,79 | 20,69 |
| 400x300 | a.r. | a.r. | a.r. | a.r. | 34,39 | 24,19 |
| 500x300 | a.r. | a.r. | a.r. | a.r. | 37,86 | 27,60 |
| 600x300 | a.r. | a.r. | a.r. | a.r. | 41,39 | 29,23 |
| 700x300 | 72,90 | 95,15 | 86,31 | 113,48 | 45,80 | a.r. |
| 800x300 | a.r. | a.r. | a.r. | a.r. | 50,21 | 34,51 |
| 1000x300 | a.r. | a.r. | a.r. | a.r. | 60,54 | 39,25 |
| 400x400 | a.r. | a.r. | a.r. | a.r. | 39,39 | 27,60 |
| 600x400 | a.r. | a.r. | a.r. | a.r. | 51,14 | 34,51 |
| 700x400 | 87,39 | 117,78 | 102,10 | 137,96 | 56,86 | a.r. |
| 800x400 | a.r. | a.r. | a.r. | a.r. | 62,57 | 39,25 |
| 1000x400 | a.r. | a.r. | a.r. | a.r. | 74,25 | 44,53 |
