EGQ1-4 Egg crate grilles with filter

Recommend this product
Home General catalogue Air Diffusion Grilles Egq1 4 Egg Crate Grilles With Filter

Description

Exhaust grille with square mesh 13x13 mm pitch in aluminum. The special profile or counterframe allows the housing of a flat filter for coarse and fine dust.

Characteristics

Material: aluminium.
Finish: anodized.
Filter: COARSE class (G2) thickness 12 mm.

Installation

The installation is performed by opening the special brackets present in the subframe or alternatively by fixing the latter to the wall or duct using screws.

EGQ1 - EGQ2: only for wall installation, ceiling installation is not recommended; closing by magnets.

EGQ3 - EGQ4: Closing with a screw.

Use

Suitable for the extraction of air.
Its nice design and the great effective section make it ideal in civil environment installation.
We recommend not to exceed the front speed of 1,5 m/s. Initial pressure drop lower than 40Pa.

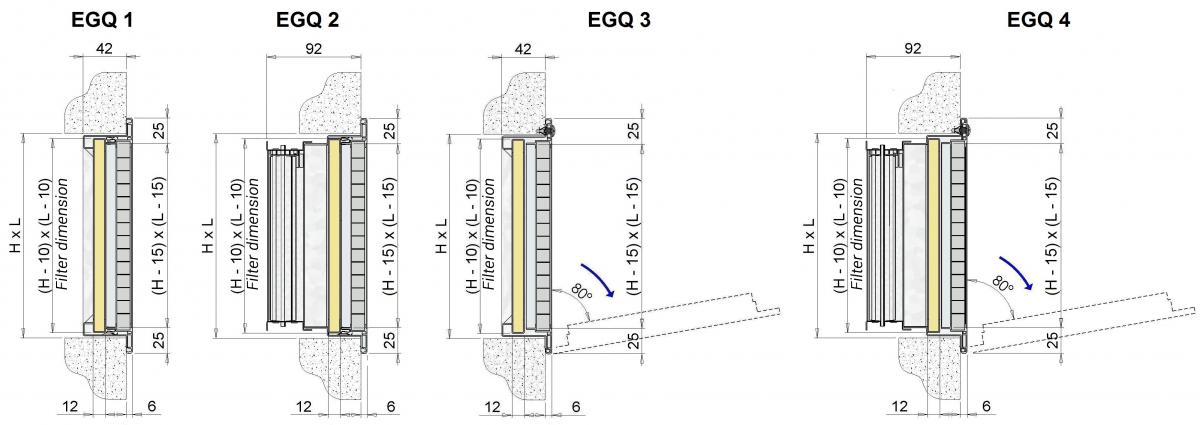

Models

EGQ1: grille with filter;
EGQ2: grille with filter and damper;
EGQ3: grille with special counterframe fixed with hinges to the frame of the grille which allows a 80° opening for the easy maintenance of the filter;
EGQ4: grille with damper and special countreframe fixed with hinges to the frame of the grille which allows a 80° opening for the easy maintenance of the filter.

On demand

Fixing by magnets or knobs (for EGQ3 - EGQ4).

Effective section


H L
200 300 400 500 600 800 1000
  effective section of the grid m²
200 0,030 0,046 0,058 0,076 0,092 0,130 0,170
300 0,046 0,070 0,092 0,126 0,156 0,206 0,258
400 0,058 0,092 0,130 0,170 0,210 0,288 0,356
500 0,076 0,130 0,170 0,205 0,258 0,364 0,450
600 0,092 0,170 0,210 0,258 0,328 0,440 0,550
800 0,130 0,210 0,288 0,364 0,440 0,580 0,720
1000 0,170 0,288 0,356 0,450 0,550 0,720 0,890

Operating data

m³/h: air flow
Pa: pressure drop in Pascal
dB(A): noise level

L: width
H: height
Dimensions are expressed in mm.

The air speed on the filter of 1,5 m/s is recommended to contain pressure drops and maintain filtration efficiency;
the air flow data in the table refer to the grill with the filter.

H V
m/s 		L
200 300 400 500 600 800 1000
  Front speed on the filter Air flow rate m3/h
200 1,5 145 235 325 415 500 680 855
2 195 315 430 550 670 905 1140
300 1,5 235 380 520 665 805 1090 1380
2 315 505 695 885 1075 1455 1840
400 1,5 325 520 715 915 1110 1505 1895
2 430 695 955 1220 1480 2005 2530
500 1,5 415 665 915 1165 1420 1920 2420
2 550 885 1220 1550 1890 2555 3225
600 1,5 500 805 1110 1420 1720 2330 2940
2 670 1075 1480 1890 2290 3105 3920
800 1,5 680 1090 1505 1920 2330 3155 3980
2 905 1455 2010 2555 3105 4205 5305
1000 1,5 855 1375 1900 2420 2940 3980 5020
2 1140 1835 2530 3225 3920 5305 6695

Noise level dB(A)

V
m/s 		dB(A)
1,5 >20
2 20/25

Pressure drop (Pa)

V
m/s 		Pa*
1,5 25/30
2 45/50

SC calibration damper

SC galvanized steel calibration damper with fins with opposing movement.
Maximum dimensions L x H for one-piece construction 1000 mm x 600 mm.

Plenum

All dimensions are espressed in mm.

model
L1 x H1 		upper air connection side air connection E F model
L1 x H1 		upper air connection side air connection E F
P1 n° connection Ø d P2 n° connection Ø d P1 n° connection Ø d P2 n° connection Ø d
200x200 200 1 198 300 1 198 80 12 500x300 200 1 248 350 1 248 80 12
300x200 200 1 198 300 1 198 80 12 600x300 200 2 198 350 2 248 80 12
400x200 200 1 198 300 1 198 80 12 800x300 200 2 248 350 2 248 80 12
500x200 200 1 198 300 1 198 80 12 1000x300 200 2 248 350 2 248 80 12
600x200 200 2 198 300 2 198 80 12 400x400 200 1 298 350 1 298 80 12
800x200 200 2 198 300 2 198 80 12 500x400 200 1 298 350 1 298 80 12
1000x200 200 2 198 300 2 198 80 12 600x400 200 2 198 350 2 248 80 12
300x300 200 1 248 350 1 248 80 12 800x400 200 2 298 350 2 298 80 12
400x300 200 1 248 350 1 248 80 12 1000x400 200 2 298 400 2 298 80 12

Price list EGQ1

Note : white painted RAL 9016 + 20%

a.r.: price on demand

Price list EGQ3

EGQ2 and EGQ4 price list on request

Plenum

dimensions upper air connection side air connection
EPZ galvanized plenum EPI isolated plenum EPZ galvanized plenum EPI isolated plenum
L1xH1 euro euro euro euro
200x200 a.r. a.r. a.r. a.r.
300x200 a.r. a.r. a.r. a.r.
400x200 a.r. a.r. a.r. a.r.
500x200 a.r. a.r. a.r. a.r.
600x200 a.r. a.r. a.r. a.r.
800x200 a.r. a.r. a.r. a.r.
1000x200 a.r. a.r. a.r. a.r.
300x300 a.r. a.r. a.r. a.r.
400x300 a.r. a.r. a.r. a.r.
500x300 a.r. a.r. a.r. a.r.
600x300 a.r. a.r. a.r. a.r.
800x300 a.r. a.r. a.r. a.r.
1000x300 a.r. a.r. a.r. a.r.
400x400 a.r. a.r. a.r. a.r.
500x400 a.r. a.r. a.r. a.r.
600x400 a.r. a.r. a.r. a.r.
800x400 a.r. a.r. a.r. a.r.
1000x400 a.r. a.r. a.r. a.r.
