EGQS-PUSH Exhaust egg crate grille 13x13 mm with filter and internal frame 15 mm
Description
Exhaust egg crate grille 13x13 mm for false ceiling, with double frame (internal 15 mm) and hinge opening and push-pull system for easy filter installation and replacement.
Characteristics
Material: aluminium.
Finish: natural anodised.
Filter: COARSE class (G2) thickness 12 mm.
Opening/closing: with push-pull system.
Installation

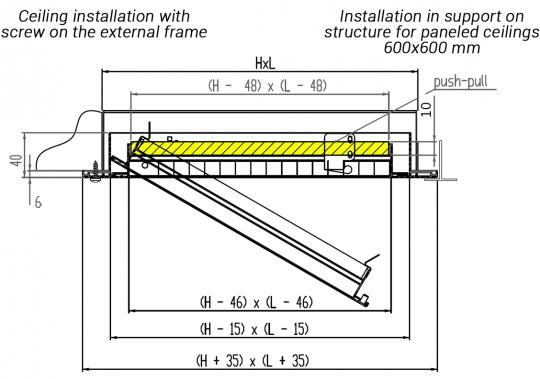

Installation is carried out by securing the external frame of the grille to the wall using screws or resting on the structure for 600x600 mm panel false ceilings.
Use
For external or indoor air exhaust where dust pre-filtration is recommended.
Initial pressure drop lower than 40Pa with 1.5 m/s speed on the filter.
Accessories
- EPZ galvanised plenum;
- EPI insulated plenum.
On request
White RAL 9016 painting or other RAL colours.
Operating data
m³/h: flow rate
Pa: pressure drops in Pascal
dB(A): noise level
An air velocity on the filter of 1.5 m/s is recommended to contain pressure drops and maintain filtration efficiency;
the flow rate data in the table refers to the grille with the filter.
All dimensions are expressed in mm.
| model | external frame size | effective filter section | Front speed on the filter | air flow rate |
| mm | m2 | m/s | m3/h | |
| EGQS-PUSH | 595x595 | 0,238 | 1,5 | 1285 |
| 2 | 1713 |
Noise level dB(A)
|
V m/s |
dB(A) |
| 1,5 | <20 |
| 2 | 20/25 |
Pressure drop (Pa)
|
V m/s |
Pa |
| 1,5 | 25/30 |
| 2 | 45/50 |
Plenum
All measurements are expressed in mm
|
model L1 x H1 |
lateral connection | E | F | ||
| P2 | no. connections | Ø d | |||
| 560x560 | 300 | 1 | 250 | 80 | 12 |
Pèrice list
Painted white RAL 9016 + 20%
| model | external frame dimensions | euro |
| mm | ||
| EGQS-PUSH | 595x595 | 160,25 |
